jewellery machinery

Jewelry Polishing and Wire Draw Machines









Jewellery Vibrator Polisher



Jewellery Vibrator Polisher
Jewellery Vibrator Polisher


This is a sturdy fabricated body vibrator polisher with full stainless steel body specially designed for gold jewellery polishing using stainless steel media such as balls, cross pins, pointed pins, etc mixed with water and jewellery cleaning compound. Its equipped with a sturdy single phase AC electric motor. The vibrator polisher is available from  1/2kg upto 8 kg jewellery cleaning capacity and supplied complete with suitable cleaning solution, shampoo and suitable S.S. media of mix type

Specification of few of the models are as under:

MODEL MVP-2 MVP-5 MVP-8
Approx. bowl
size in cms.
35x14x15 50x20x20 50x22x22
Motor Power  0.5 HP 1.0 HP 1.5 HP
SS media holding Cap  15 Kgs 35 Kgs 45 Kgs
Jewellery holding Cap 2 Kgs 5 Kgs 8 Kgs


SS media in various size and shapes are available.
Kindly ask for details.


Go Top



Magnetic Polisher



Magnetic Polisher

1kg Capacity Magnetic Polisher
This is programmable magnetic polisher having auto reverse / forward operation with digital display. The machine is powered by sturdy suitable single phase motor and fitted with excellent quality magnets to provide maximum force for better polishing quality and for long life.

These magnetic polishers are available in 1/2kg, 1kg and 2kg jewellery cleaning capacity having bowl size from 8" upto 12" for 2kg capacity. The machine is supplied complete with suitable magnetic media, cleaning solution and shampoo.

Kindly ask for details.


Go Top

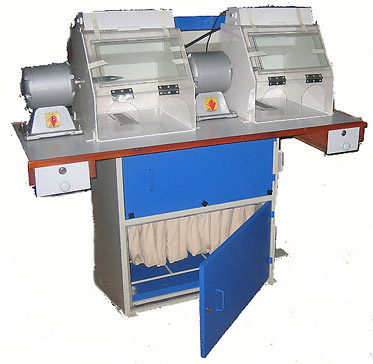

Vaccum Buff Polishing Machine



Vaccum Buff Polishing Machine This is a heavy duty double operator vaccum buff polishing machine. This machine uses much more efficient filter system. Also in addition to the main suction blower and the filter bag recovery system, we have also provided for secondary filteration system on the back side of the machine. This is the extremely effective and efficient recovery system.
Features:
a. Separate buffing motors each of 0.75 HP for both workstations with individual switches and individual work lights arrangement.

b. Central High Suction blower driven by 2.0 HP AC electric motor.

c. Uses much more efficient filter system instead of single sack bag system for dust collection.

d. Secondary filteration system is provided at back for extremely effective and efficient recovery

e. Filteration system is provided with pull back dust recovery tray

We also have single station vacuum buff polishing machine. Kindly ask for details.


Go Top

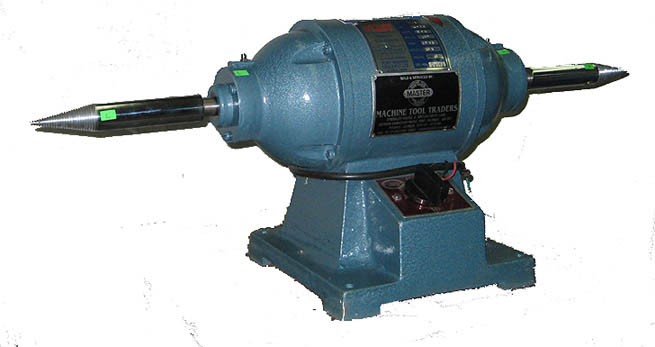

Bench Polisher




bench polisher




This is our standard bench polisher. Our bench polishers are excellent in quality and are totally enclosed type with spindle suitable for 50 / 60 Cycles A.C. supply. This polishers are available in various capacity from 0.25 HP upto 7.50 HP capacity. Our 3HP, 5HP and 7.5HP polishers are fitted with four ball bearings and with copper rotor. We can supply you this polisher in different voltages and AC cycle supply.

Kindly ask for details.

Go Top



Ultrasonic Cleaner




Magnetic Polisher





This is a stainless steel body Ultrasonic Cleaner designed for Jewelry Cleaning.

It has a ultrasonic generator and S.S. transducer built into the body. It is equipped with temperature controller and drain cock. It is available in various tank sizes from 3 litres upto 20 litres capacity. The machine is suitable for operation on 220 volts single phase AC electric supply.

Kindly ask for details.

Go Top





Steam Cleaner




Magnetic Polisher



This is a stainless steel body high pressure steam cleaner.

Pressurized steam jet is created from water fed into the tank and directed towards the Jewelry to be cleaned to remove grime, micro deposits and dirt. It gives the Jewelry a bright sparkling finish. The machine is suitable to use on 220 volts single phase AC electric supply.

Kindly ask for details.



Go Top





Wire Drawing Machines


Single Pass Wire Drawing Machines
Six Pass Wire Drawing Machines
Single Pass Wire Drawing Machine

Six pass Wire Drawing Machine
This is a single pass two speed motorized wire drawing machine. It is supplied with 0.5 HP 220 volt Single phase AC elec., motor, switch & V belt. The machine also has a thread twisting arrangement.








This is an ideal geared type motorized wire drawing machine arrangement to hold six wire drawing dies at one time. It is fitted with special self-adjusting wire winding system so that the wire does not break during operation. It is fitted with motorized coolant pump to keep the drawing dies cool for better finish & longer die life.
