DIAMOND FACETING MACHINES

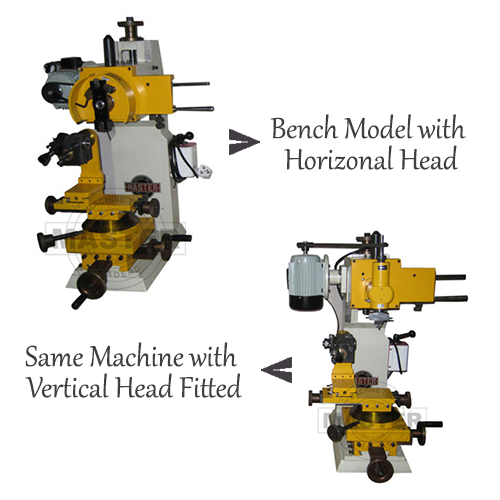

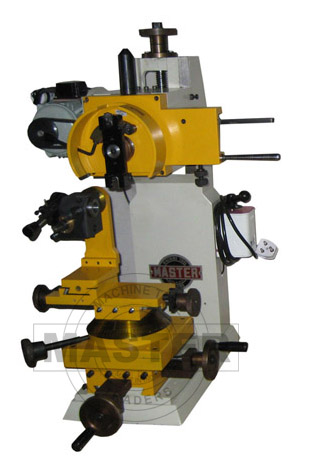

Horizontal Head Simple Bench Faceting Machine

Bench Model with Horizonal Head

Vertical Head Simple Faceting Machine

Same Machine with Vertical Head   Fitted



This is a simple horizontal head bench model diamond cut faceting machine. It is a versatile easy to use machine and with the use of basic slides, it is possible to design a large variety of items. Its time tested divider assembly is very simple and easy to operate and also allows manual operation for hand dulling of bangles. The vertical head can be fitted in place of horizontal head easily and quickly. Kindly ask for details.

Standard accessories supplied with the machine :
a. One 1/6 HP single phase 220 volt AC electric motor, Switch.
b. 17 pcs NYLON collets for bangles & 17pcs collets for rings.
c. Flat pendant cutting attachment.
d. Pipe chain attachment and Ball para attachment.
e. Hand operated brake for the horizontal head .
f.  2pcs Diamond Tools and 2pcs Carbide Tools.

Extra accessories available include vertical head, special lining attach, chain cutting attachment & microscope.


Go Top

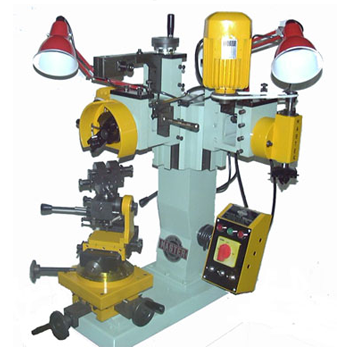

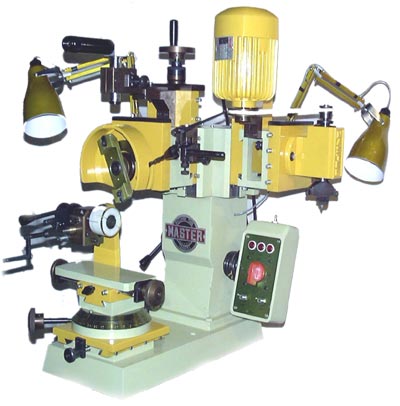

MASTER two head faceting machine
This is an extremely versatile yet simple to operate machineallowing working with horizontal and vertical head on the samearticle without having to recenter the machine. With the help ofsimple lever, the vertical head can be brought over the work piece without changing the overall center of the machine. This machine is extremely efficient for higher production.
Kindly ask for details.

Standard accessories supplied with the machine:

a. Two pieces 1/6 HP single phase motors with control panel.
b. 17 pcs NYLON collets for the bangles & 17 pcs collets for rings.
c. Flat pendant cutting attachment.
d. Pipe chain attachment and Ball para attachment
e. Hand operated brake for the horizontal head
f. 2pcs Diamond Tools and 2 pcs Carbide Tools.

Extra accessories available include special lining attach, chain cutting attachment, six tool holder & microscope.

Go Top

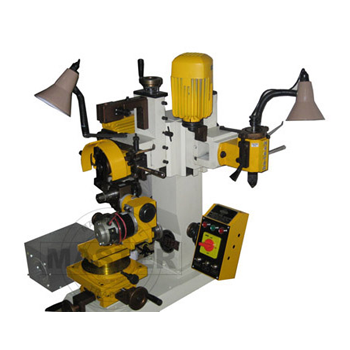

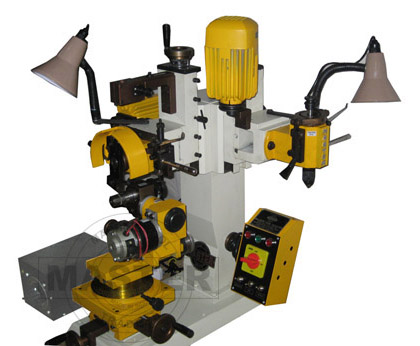

motorised lining double head faceting machine



This is a redesigned Universal two head diamond faceting machine with all the features of our standard universal two head machine with added features. This machine is equipped with an additional motor fixed to the main divider assembly with separate adjustable speed controller to control the rotational speed of the ring or bracelet under production. This machine is also equipped with special vertical head normally supplied only with our swiss type faceting machines.

 This machine also offers the same standard and extra accessories as offered for our standard universal two head diamond faceting machines.


Go Top




zig-zag design photo

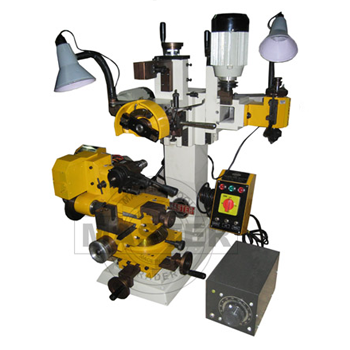

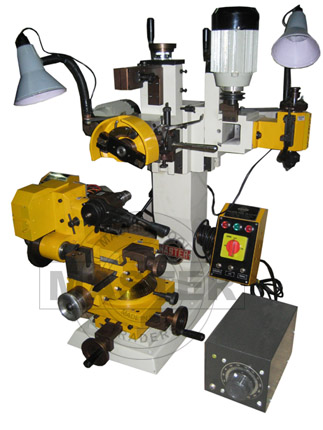

Zig Zag Faceting Machine


This is an upgraded model of Universal two head diamond faceting machine equipped with additional motor with controller and redesigned main divider moving assembly. This diamond faceting machine is designed for wider bracelet designs allowing Zig Zag cutting action besides the normal straight line cut with horizontal head and cuts in arc with vertical head. This machine is also equipped with special vertical head normally supplied only with our swiss type faceting machines which allows for lifting of the tool head to see the cuts being performed during operation.

 This machine also offers the same standard and extra accessories as offered for our standard universal two head diamond faceting machines.

Go Top

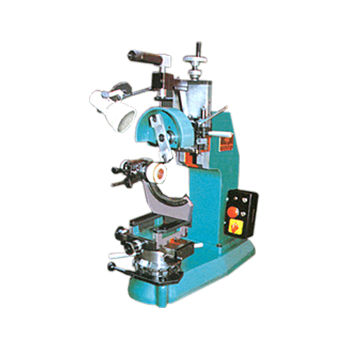

swiss type faceting This is a horizontal head swiss type bench model facetting machine. Its swiss type divider design makes the machine operation really easy and simple. Provision is made so that vertical head can be fitted easily in place of the horizontal head. The machine is light weight and occupies little floor space.
Kindly ask for details.




Standard accessories supplied with the machine:

a. One pc 1/6 HP single phase AC electric motor with control panel.
b. Microscopic attachment with microscope
c. 18 pc NYLON bangle collets and 20 pcs Brass Ring collets
d. 5 pcs Pendant collet and 4 pcs Tops collet
e. Flat Pendant attachment.
f.  Pipe Chain and Damru attachment.
g. Electric push button brake for horizontal head
h. 2 pcs Diamond Tools & 2 pcs Carbide Tools

Extra accessory available includes specially designed vertical head with tool lifting arrangement with separate motor, chain cutting attachment, six tool holder etc.

Go Top

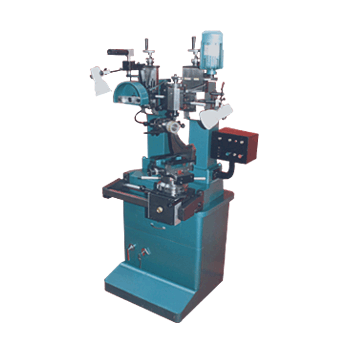

floor model swiss type faceting

This is a combined horizontal and vertical head facetting machine with divider assembly mounted on strong base moving on main shaft with ball bearing for easy movement and machine supplied with stand with drawer and tool chest: Kindly ask for details.



Standard accessories supplied with the machine:
a. Two pcs 1/6 HP single phase AC elec. motor with control panel.
b. Microscopic attachment with microscope.
c. 18 pcs NYLON Bangle collets and 20 pcs Brass Ring collets.
d. 5 pcs Pendant collet and 4 pcs Tops collet.
e. Flat Pendant attachment.
f.  Pipe Chain and Damru attachment.
g. Electric push button brake for horizontal head.
h. 2 pcs Diamond tools & 2 pcs Carbide Tools.

Extra accessory available include automatic motorised self lining attachment with separate motor and speed regulator, electromagnetic INSTANT STOP to horizontal head, chain cutting attachment, six tool holder etc.

Go Top
