POWER PRESSES AND HYDRAULIC AND MECHANICAL PRESS BRAKES

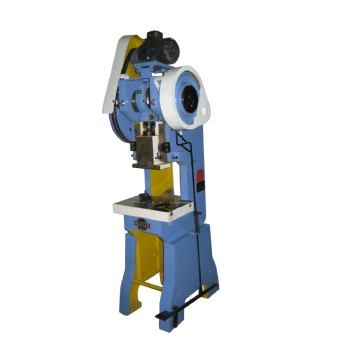

C Type Mechanical Power Press

This is a C frame Steel body Power Press available in both inclinable and fixed type designs.

It is available in 16 different sizes from 5 tons to 250 tons capacity in geared and ungeared models with different stroke lengths and different bed size to suit every requirement.

Extra accessories including machine mounts are available against order.

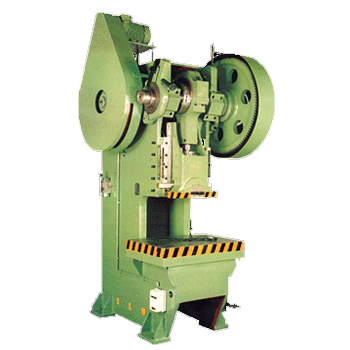

Gap Frame Precision Power Presses

This is a C frame, single point suspension, non-inclinable single action press having Steel Plate construction duly stress relieved, with rolling key clutch mechanism.

This is a standard work horse machine for every press shop and supplied complete with electric motor, starter, gear and fly wheel guards, one shot lubrication device. Its available in eight models from 20 Tons capacity to 100 Tons.

If required, inclining mechanism and motorized automatic lubrication system is offered at extra cost.


High Speed Precision Power Presses

This is a straight sided, single action press having steel plate fabricated construction duly stress relieved, with 8 point gibbling of slide, fitted with pneumatically operated combined single disc friction clutch and brake, motorized automatic lubrication with re circulation arrangement and manual slide adjustment. It features inter-locking of functions and dual solenoid valve to ensure "FAIL SAFE" operations. The variable speed drive for wide range and quick selection of speed together with above features makes this press extremely productive, reliable and safe.

The press is supplied complete with electricals, comprising electric motor, control panel, die area light, preset production counter, anti-jam releasing device, electro-pneumatic safety controls. It is available in 25, 40, 63, 100 and 160 Tons capacity. Please ask for further details on High Speed Roll Feeder, Straightner, and Decoiler available as optional extra equipment.

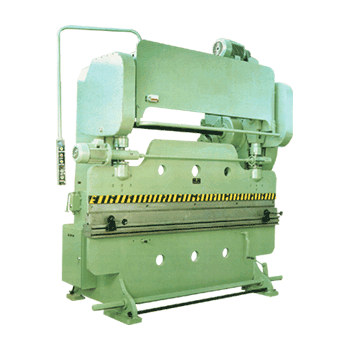

Power Press Brake

This is a steel fabricated mechanical power press brake with robust steel frame to ensure minimum deflection. It is provided with several salient features:

Twin type gear drive system provides a balanced transmission of torque on the eccentrics.

Fork type connecting links are mounted on the side frames thereby avoiding eccentric loads.

Disc type powerful clutch & brake are highly efficient.

Motorized Ram adjustment is provided as standard

Additional Bolster plate provided in higher capacity machines.

The machine is supplied complete with electric motors, control panel, stroke counter, standard Die block and punch, hand operated back gauge, guards and shot lubrication.

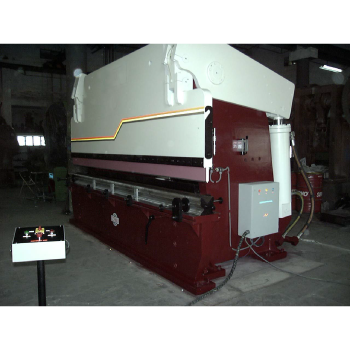

Hydraulic Press Brake

These are heavy duty Hydraulic Press Brake machines available in a wide range of capacities ranging from 20 tons to 500 tons in pressure and job sheet size from 1500 mm to 5000 mm in length with 1.62mm to 20 mm in thickness.

The machines are supplied complete with all standard accessories including the following:

Main Drive Motor

Electrical control panel with selection of AUTO, INCH and Single Cycle AUTO mode of operation

Pair of foot switches

Pair of lifting links

Fine stroke adjustment rod with limit switches

Front operated manual back gauge with fine setting knobs

One suitable 5 way die and universal upper blade- segmented or full length

Centralized lubrication system with hand pump

Pair of sheet supports

Bending chart

Maintenance tool kit

Comprehensive instruction & maintenance manual with CD

Many optional accessories are offered such as:

These are heavy duty Hydraulic Press Brake machines available in a wide range of capacities ranging from 20 tons to 500 tons in pressure and job sheet size from 1500 mm to 5000 mm in length with 1.62mm to 20 mm in thickness.

The machines are supplied complete with all standard accessories including the following:

Motorized deflection compensation unit

Ram tilting arrangement

Hardened and ground tools & special toolings

Motorized back gauge with DRO

Sliding sheet supports with swing away stoppers for front gauging.

Hydraulic tool clamping

Photo electric finger safety guards

We also offer NC and CNC Synchro Press Brakes. Kindly ask for details with your requirements.
