SHEETMETAL WORKING MACHINES

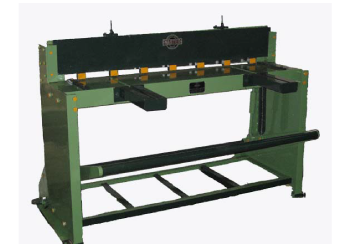

Treadle Shearing Machine

Treadle Shearing Machine

Treadle guillotine shearing machine are indispensable in sheet metal industries as they lead amongst all on account of versatile design, rigid construction, rigorous tests for the capacities and appearance. Tredle shears are specially designed for rapid and continuous cutting of steel sheets of varied widths and trimming them in unlimited lengths.

Features:

High tensile springs for quick return of treadle.

4 Cutting edged hardened & ground quality blades.

Rigid and streamlined construction.

Spring loaded sheet holding device.

All steel fabricated construction body.

In every treadle shearing machine, the bed and top beam have full adjustments for correct setting and easy removal of blades for accurate cutting and for regrinding. The spring loaded pressure pad holds the The spring loaded pressure pad holds the perfect parallalism of cutting on either side. The adjustable front and back guages with running Tee slots facilitate adjustment of various widths of the cuts and avoid any kind of twistings, turning of sheets while cutting. Square guide on the side of the table facilitates square cuts. The cutting edge blades avoid frequent grinding & adjustment and also very easy to grind to the rectangular shape.

These blades can be used with slight change in cutting angle to ribs, plastics, card board, rubber, mica etc., without any sign of squeezing or crushing.

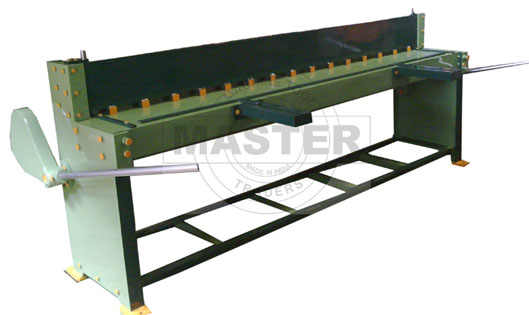

Hand Operated Shearing Machines

Hand Operated Shearing Machine

These are extra heavy duty 2500 x 1.0 mm in mild steels capacity hand operated shearing machines. This has well constructed and ideally basic machines for various shear able material like M.S., S.S., Aluminium, Mica, Copper, Plastic, Gasket, Fiber etc.

This hand operated shearing machine is considered and fabricated to provides high degree of solidity confirming exact burr able and accurates cut. This machine has equipped with C.I. slide anywhere compulsory. Spring loaded hold down device is also providing for fixed clamp of sheet though cutting to confirm similar out.

Both lowers and uppers blade of machine is properly alloy steels, proper hardened and grounds, having four cutting edge.

This manual shearing machine is offered in all size from 1000mm upto 2500mm width and having maximum cutting capacity in MS of upto 1.6mm.

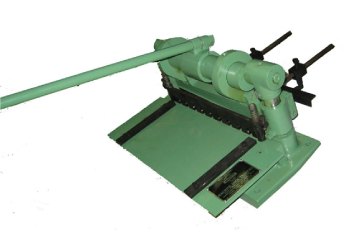

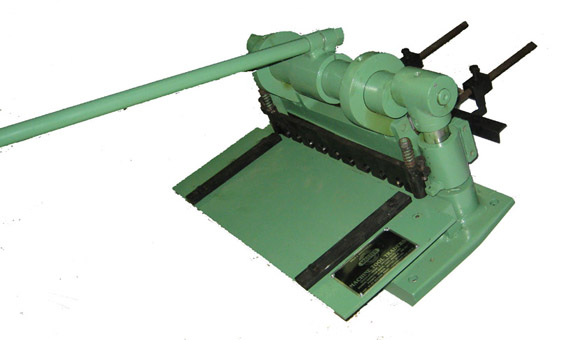

Bench Shearing Machine

Bench Shearing Machine

This is bench model hand operated shearing machine. This machine is designed to give high degree of stability and cutting process is CAM actuated ensuring precise burr free and accurate cutting. This machine makes cutting process very simple, safe and effortless. The machine uses C.I. bush bearings to ensure cutting accuracy.

These shearing machines are available in various sizes starting from 310mm upto 610mm width and maximum cutting capacity of 1.6mm in M.S. sheet.

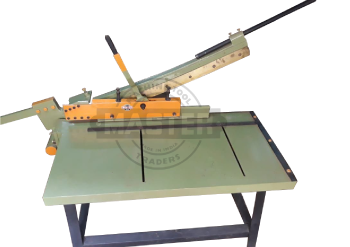

Sheet Metal Board Shearing Machine

Sheet Metal Shearing Machine

This is 1000mm x 1.5mm in mild steel capacity sheet metal board cutter in our model GS-1000.

This sheet metal board cutter will be able to work with up to 1.5mm in mild steel. In this machine, you will be able to shear sheet in straight line at longer than 2000 mm as well as you can push the material forward and take another cut. Even in this machine, side guage and front guage is given and also firm clamping mechanism is provided.

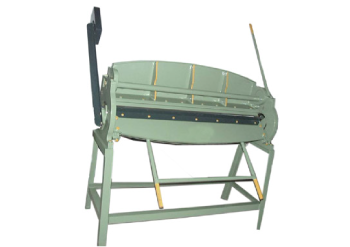

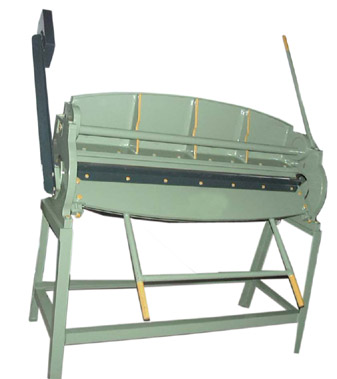

Hand Operated Sheet Folding Machine

Sheet Metal Notching Machine

This is a Mild Steel Fabricated Body heavy duty yet easily to operates Hand operated Manually CMT types Sheets Folding machines to folds upto 1250mm lengths x 1.6mm width mild steels sheet. The machine has very useful with latest designed feature making the operations of these folding machines easily and flexible to suits the job requirements. The upper beams have maintained by operative handles on one side and flexibl counters load on the other sides. The lower beams are the operative handles which move easy & smooth. The complete hand folding machines are attached on proper fabricated stands for propers heights for comfort of operations. The fabricated stand has broader at the based for add constancy. This sheet folding machines have supplied with one full length standards finger and other as per requirements can be supplied.

We can also supply this machine in heavier versions to fold sheet upto 2.0mm width besides specific orders.

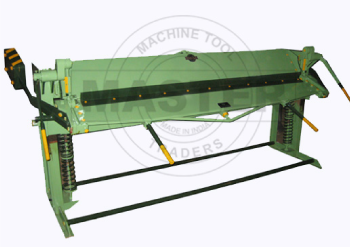

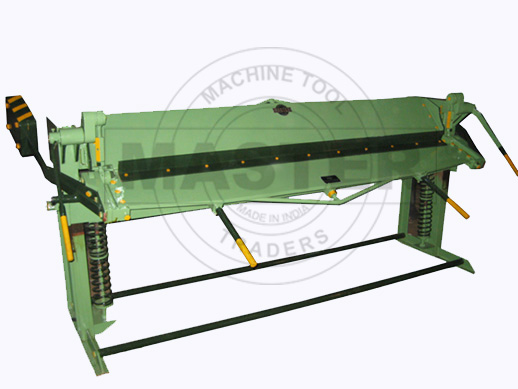

Universal Folding Machine

Folding Machine

Universal sheet folding machines are extremely versatile machines suitable for many application. These heavy duty sturdy machines are well fabricate from mild steels with hinge point in rollers bearing for effortless foldings. The eccentrics and other pin is made from alloy steels duly hardened. Our universal folding machines incorporate adjustable truss bar which ensure accurates and straight folding even for full length jobs.

The side of the machines are well fabricate using M.S. Tee and I beam. Both side is joined with three tie bar to maintain strength.

The upper beams – Ram, of the machines have reinforced properly and equipped with three adjustable truss bar. It can moves upto 200 mm to fixed variou type of finger to facilitates taking different type of bend. Its move in dovetail slide for accurate works.

This universal folding machine is available in several length of 1250mm, 2000mm or 2500mm with thickness of sheet upto 2.0mm in mild steels. The normally jaw opening is 75mm and bending angle upto 135 degree.

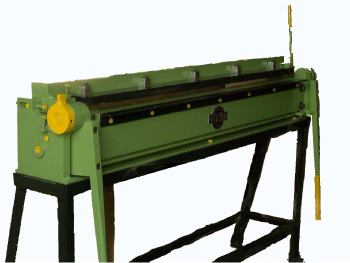

Box & Pan Folding Machine

Jewelery Folding Machine

Precision Bending Brake (Boxes and Pan Folding Machines) involves mostly of a frames of robust contructions and a bending beams precisely support on either sides and provide with operating handle. Additional of a top beams with firm clamping beams, a clamping for obtaining the sheets to be bent and an changeable materials gauge.

The operational handle of the bending beams can be sets two position in ordered to obtains the mostly favourable working position. On either sides of the machines the angular displacements of the bending beams by a guages. The clamps are operating by a handles on the right hand sides of the machinery. The adjustements of the clamping device to the correct sheets thickness has effected by mean of two nuts at the front of the top beams.

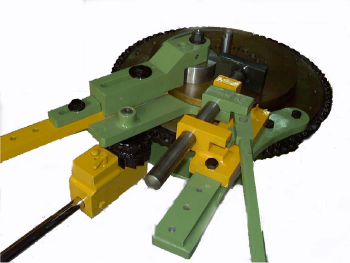

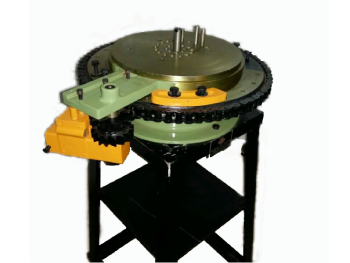

Rapid Bending Machine

Jewelery Bending Machine
Folding Bending Machine

Rapid bending machines are simple and universal machines for rapid and accurate bending and forming of pipes and tubes, wire strip round, square, hexagon, pressed sections, steel tubes etc with the help of different kinds of bending tools.

Multi-purpose rapid bending machines equipped with a circle of needle roller bearing for smoothly bending. Models No. 4 & 5 feature a notch device with left & right movements which greatly increased making powers when working with heavy material. For speed in working bright material. Standard equipments include fold finding measure. Setting this gauge allow any numbers of part to be duplicated, angle stop to determine degree of bend and locking pin to securely clamp materials provide, zero radius bending blocks, shoulders radius pins, quill radius pins, radius collars and forming rollers.

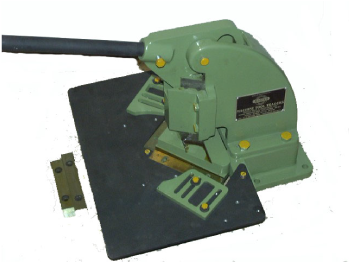

Corner Notching Machine

Corner Notching Machine

Hand operated notching machines are ideally suitabled for making boxes chassis and panels blank having strokes of ram 20mm, sizes of tables about 450 x 300 mm and supplied completed with hardened tools steel notcher blades, adjustable self squaring guage and handles.

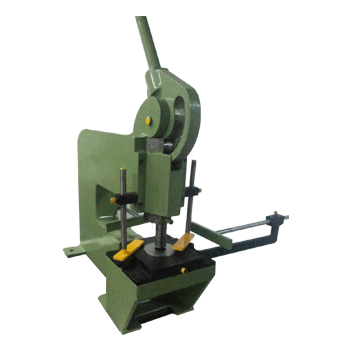

Punch Press Machine

#
#

This is excellent quality MASTER manual punch press machine. This punching press is ideal and suitable for variety of jobs such as punching, pressing, stamping, cutting, bending, drawing etc. It is versatile machine and having deep throat of 300mm. Roller cam type mechanism ensure four tons pressure at a minimum effort. Various dies and punches can be fitted and change very easily and quickly. The machine is suitable to work with up to 1.6mm mild steel sheets.


Circle Cutting Machine

Circle Cutting Machine
Circle Cutting Machine India

Circle Cutting Machines are one of the principal machines in sheet metal industries. It is mainly used as the name indicate to cut the circle of sheets materials, annular ring & strip.

Our hand operated machine is available in model:-

14H, 18H, 24H, 24HB, 36H, 36HB & 48HB is used for cutting 18 swg MS / 22 swg SS.

Our motorised machine available in model:-

18M2, 24M2, 36M2, 48M2 & SPM for specific sizes are used for cutting 14 swg / 18 swg SS.

24M3, 36M3, 48M3 & SPM for specific sizes are used for cutting 10 swg / 16 swg SS.

24M4, 36M4, 48M4 & SPM for specific sizes are used for cutting 8 swg / 14 swg SS.

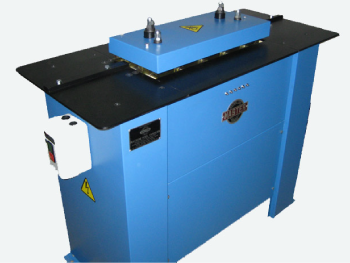

Lock Forming Machine

Lock Forming Machine

Rolling heads of our Lock Forming Machines are manufactured using precision machined components consisting of hardened and ground shafts running in needle roller bearing, a hardened gear train, hardened and blackened alloy steel rolls for corrosion resistance.

Our lock former machine is supplied with one set of Pittsburgh lock forming dies duly fitted on the machine and is supplied complete with 1.0 HP electricals.

The production rate for our machine is 26 feet per min. The standard capacity of machine is 0.5mm to 1mm.

We can supply you optional auxiliary rolls such as right angle flange rolls, double seam, drive cleat and plain seam rolls. We can also supply you optional auto-guide power flanging attachment.

We also have section bending machine for bending channels, angles and all related sheet metal machinery suitable for your application.


Swaging Machine

Jewellery Cutting Machine

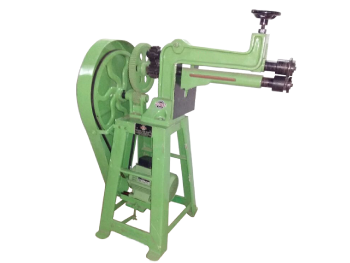

Deep Throat Swaging

Universal Cutting Machine

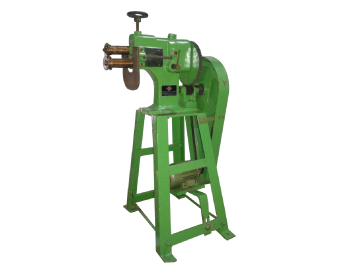

Universal Swaging Machine

Jewellery Folding Machine

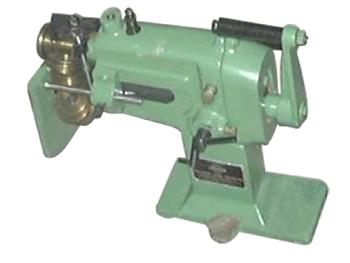

Hand Operated Swaging Machine

We offer swaging machine for sheet metal flanging, beading, curling, burrying and closing operations in hand operated as well as motorised models.

We have hand operated bench model swaging machines which are supplied with six swage rolls for curling, closing and flanging rolls. This hand operated machines have throat depth of over nine inches and suitable for 20 guage sheets. We also offer nine inch throat machine in motorised model with heavy stand and 1.0 HP electricals suitable to work upto 18 guage sheets.

We also have Deep Throat Swaging machine having throat depth of Eighteen inches and is suppied with heavy stand and 2.0HP electrical suitable to work upto 16 guage sheets. The deep throat machine is supplied with only One swage roller with the machine. You may order additional rollers as required. Kindly ask for details.
