Slitting Machine with Coiler
Slitting Machine With Coiler and Decoiler
This is a Precision Slitting machine.
The hardened and ground rollers are housed inside heavy MS Plate fabricated body with rollers running inside precision roller bearings.
The machine is having three gear type roll lifting arrangement with fine battler thread screw for very fine roll height adjustment.
The rolls are driven through suitable pinion gearbox with universal joints and a worm type gear box for excellent and smooth working.
The machine is equipped with automatic adjustable coiler for precise winding and Decoiler with clutch type brake for tension setting for proper feeding into the rollers.
The coiler has its drive from the main motor and the machine is driven by a suitable HP AC electric motor. The machine is having a front panel electric control panel housing the ON/OFF Switch.
As per customers requirement machine without the Decoiler is also offered.

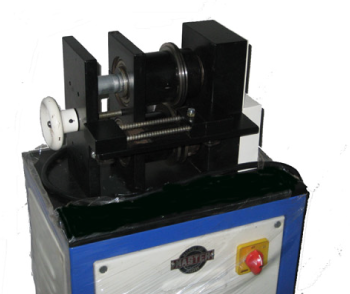

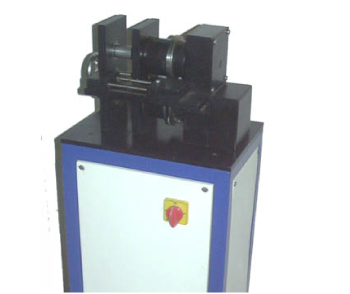

We have two models of preicsion strip cutter. Our motorized model precision strip cutter is equipped with circular disc cutters and is adjustable to cut precise strips from 5mm upto 60mm as per your requirement.
The other model is fixed width hand operated precision strip cutting machine. This machine is usually prefered by customer making hollow balls and for those you require very precise fixed width strips of one or two sizes only. The cutters for this machines are designed in such a way that they fit into one another like male-female type roll to give extremely accurate width strips.
